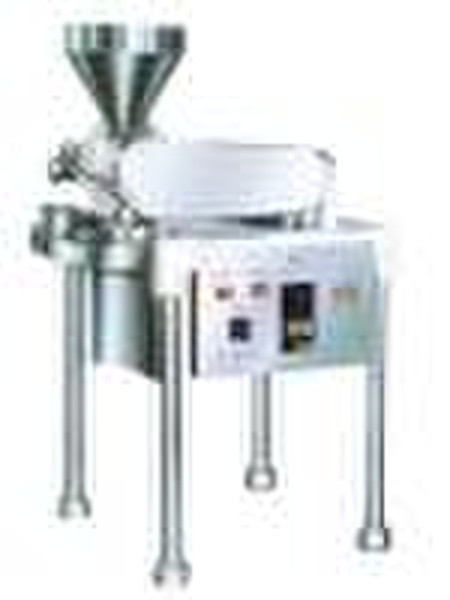

Fine Crusher (YF Series)

Main applications:The machine unit is suitable for such fields as pharmaceutical, food,and chemical. With no limit of viscosity, hardness, and fiber contentof the material, it is functioned with air cooling and screen-free.It has good pulverization effect to any material, especially suitablefor fibrous Chinese herbs or oily materialsWorking principles:1) The machine unit is made up of charging bucket, stepped gear,pulverizing knife, gearing, pulverizing motor, discharging port,fan blade, aggregating box, and dust collection box2) The material is fed into the pulverizing room through the chargingbucket, and pulverized through knife with high rotation 3) The fineness of the material is controlled by the adjustment ofgap between stepped gear and stepped pan 4) The well-processed material is suctioned from the pulverizing roomto the cyclone separator by fan blade with high rotation and thengoes into the aggregating box passing through the star valve 5) The half-processed material will remain to be pulverized in thepulverizing room 6) The dust is collected by the dust collection box and reused 7) The machine unit is designed according to GMP standards 8) It is featured with simple structure, convenient operation andcleaning, small noise, and high output 9) The machine is made of stainless steel with high quality 10) There is no dust during the pulverizingInner packing:Plastic packingOuter packing:Wooden case
